| Lugar de origen: | Shandong |
| Nombre de la marca: | Kwayt |
| Precio: | FOB $590-$650 |
|---|---|
| Detalles de empaquetado: | PAQUETES |
| Tiempo de entrega: | 25-30 días |
| Condiciones de pago: | T/T, L/C |
| Capacidad de la fuente: | 3000-5000 toneladas cada mes |
| Cantidad de orden mínima: | Puede aceptar pequeñas cantidades |
The biggest manufacturer from the north of Shandong Province,China for galvanized steel pipe,steel tube and fittings
superior quality with moderate price
wide size range
quick deliverly
oem available

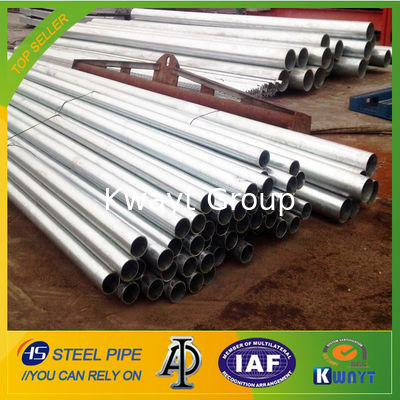

Product | BS1387-1985 ASTMA53 hot dipped galvanized steel pipe for structure | |
Size and | Outside Diameter: | Wall Thickness: |
| 21.3-219.1mm | 1.57-6.0mm |
Tolerance | +/1% | +/-8% |
Length | 3.00-12.00M or according to the client’s requirement | |
Brand Name | KWAYT | |
Material | Hot Rolled Carbon Steel, | |
Q195,Q215,Q235,A53,St37,BS1387. | ||
Standard | ASTM/ BS/ GB | |
Surface | Galvanized,Zin 200 to 500 g/m2 | |
Usage | For low pressure liquid delivery such as water and gas. | |
For construction. | ||
For greenhouse structure | ||
Certification | ISO9001-2008 | |
Payment | T/T or L/C at sight | |
Trade Term | FOB/C&F/CIF | |
Delivery Time | According to the order quantity (at one lot) | |
Package | 1.Large OD: in bulk | |
2,Small OD: Packed by steel strips | ||
3,As per to clients | ||
Supply Ability | 10000 metric tons per month | |
MOQ | 10 metric tons | |
Shipment | Container or bulk | |
Shipment Port | Tianjin | |
Theoretical weight scale for | |||||||
| Pipe Size | O.D | W.T | Welded pipe (6Meters) | Galvanized steel pipe (6Meter) | |||
| Nominal Bore | Inch | mm | mm | Weight/Meter(kg) | Weight/Pieces (kg) | Weight/Meter(kg) | Weight/Pieces (kg) |
DN15 | 0.6 | 21.3 | 2.8 | ||||
| DN20 | 0.8 | 26.9 | 2.8 | 1.66 | 9.96 | 1.76 | 10.56 |
| DN25 | 1.0 | 33.7 | 3.2 | 2.41 | 14.46 | 2.554 | 15.32 |
| DN32 | 1.25 | 42.4 | 3.5 | 3.36 | 20.16 | 3.56 | 21.36 |
| DN40 | 1.5 | 48.3 | 3.5 | 3.87 | 23.22 | 4.1 | 24.6 |
DN50 | 2.0 | 60.3 | 3.8 | 5.29 | 31.74 | 5.607 | 33.64 |
| DN65 | 2.5 | 76.1 | 4.0 | 7.11 | 42.66 | 7.536 | 45.21 |
| DN80 | 3.0 | 88.9 | 4.0 | 8.38 | 50.28 | 8.88 | 53.28 |
| DN100 | 4.0 | 114.3 | 4.0 | 10.88 | 65.28 | 11.53 | 69.18 |
| DN125 | 5.0 | 140 | 4.5 | 15.4 | 90.24 | 15.94 | 98.65 |
| DN150 | 6.0 | 168.3 | 4.5 | 18.18 | 109.1 | 19.27 | 115.6 |
| DN200 | 8.0 | 219.1 | 6.0 Welded | 31.53 | 189.2 | ||
| DN200 | 8.0 | 219.1 | 6.5 Hot dip galvanized | 36.12 | 216.7 | ||
1. Packing:
In bundles,in bulk,plastic waterproof package or as your request.
2. Small diameter(measurement<weight):
Length≤5.8m,put in a 1*20FT with 25 tons max.
Length≤11.8m,put in a 1*40FT with 27 tons max.
Length≥12m,bulk shipment
3. Large diameter(measurement>weight):
5898*2352*2350mm: A 1*20 FT
12024*2352*2395mm: A 1*40 FT
