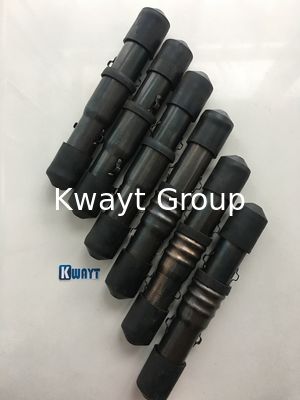

CSL Tubes for foundation

Datos del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	KWAYT
Número de modelo:	50 mm

Pago y Envío Términos:

Cantidad de orden mínima:	500 piezas
Tiempo de entrega:	7-10 días
Capacidad de la fuente:	20000 por mes

Contactar ahora

Descripción detallada del producto

Commodity	CSL Tubes(Cross Sonic Logging)
OD	38mm,50mm,53mm,57mm,112mm,163mm
Thickness	1-2mm
Material	Q195 etc.
Length	5.8m
Certification	TUV,ISO
type	press-clamp type, push-fit type,threaded type,flanged type
standard	ASTM/BS/GB etc
Material	Q195 etc
Color	black
End finish	plain
Surface treatment	PE or oiled or mill varnish

Position splice

• No wastage – standard lengths

• No Electricity/Welding/Threading

• Push-fit assembly

• Fast & Light handling by workers

• Easy fixing to rebar cage

• No weather limitations

• Patented & designed for sonic testing

• 100% tested in factory

• Easy visual inspection on site

• Optional mechanical crimping

Size/OD(mm	WT(mm)	Tensile strength(Mpa)	Elongation	Internal pressure(Mpa)	External ressure(Mpa)
50	1--3.5	≥315Mpa	≥14%	≥1Mpa	≥4Mpa
54	1--3.5	≥315Mpa	≥14%	≥1Mpa	≥4Mpa
57	1--3.5	≥315Mpa	≥14%	≥1Mpa	≥4Mpa

sonic pipe , is dedicated for sonic test applications. They are specially designed to be encased in foundations such as bored piles, diaphragm walls and barrettes to allow for future testing of the concrete integrity by ultrasonic waves.

sonic tube is the Push-Fit SYSTEM available on the market dedicated for sonic test applications. The concept is to form a bell mouth by enlarging the end of the tube to allow a CONCRETE PROOF JOINT.

CSL Tubes for foundation
