| Lugar de origen: | Shandong |
| Nombre de la marca: | KWAYT-SONIC |
| Certificación: | SGS |
| Número de modelo: | 50 |
| Cantidad de orden mínima: | 1000pcs |
|---|---|
| Precio: | USD1.3-2.0 PER METER |
| Detalles de empaquetado: | En bundios |
| Tiempo de entrega: | 7-15 días |
| Condiciones de pago: | L/C, T/T, D/A, D/P, Western Union, Moneygram |
| Capacidad de la fuente: | 100000 pcs por mes |
| Material: | Acero Q195 | Longitud: | 5,8 o 6m |
|---|
| Commodity | sonic pipe |
| OD | 50mm,53mm,57mm,1142mm,163mm |
| Thickness | 1-2mm |
| Material | Q195 etc. |
| Length | 5.8m |
| Certification | ISO.Testing report. |
| type | push-fit type |
| standard | ASTM/BS/GB etc |
| Material | Q195 etc |
| Color | black |
| End finish | plain |
| Surface treatment | black annealed |
Advantage
1.Fast and easy installation by worker.
2.Push-fit assembly.
3.No welding required at jobsite.
4.No equipment required.
5.Easy fixing to rebar cage.
6.Push-fit mark to ensure full engagement.
| Size/OD(mm | WT(mm) | Tensile strength(Mpa) | Elongation | Internal pressure(Mpa) | External ressure(Mpa) |
| 50 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |
| 54 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |
| 57 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |

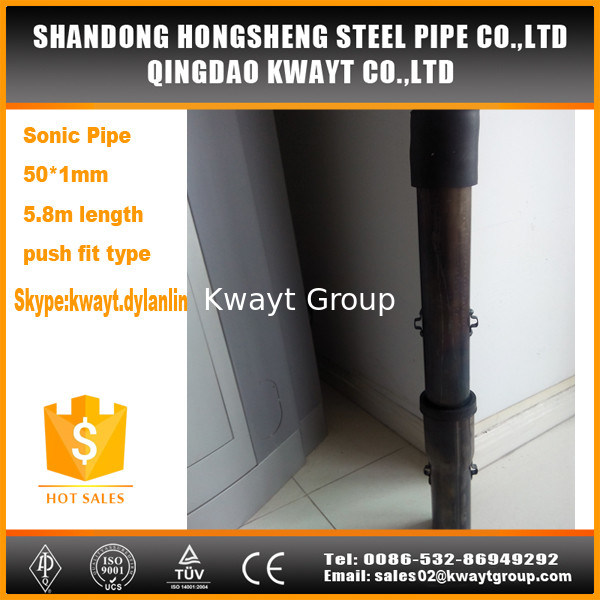

KWAYT Sonic tubes are Push-fit type CSL tubes are made by thin black annealed steel tube, with an enlarge end in a bell mouth shape .Specially designed rubber gasket for the bell mouth ensure quick installation and perfect sealing to keep the tube integrity and avoid the entry of other material.
Application of sonic tube:
KWAYT-SONIC tubes installation:
1.Install a bottom cap onto the first sonic tube.
2.Fix the sonic tube to the rebar cage by tying the steel wire around the fixing ears and tube.
3.Fix the next tube to the rebar cage as the step 2.
4.Push the two tubes together.(Push-fit mark to ensure full engagement).
5.Ensure that both ears are aligned.Then connect tightly the ears of both tubes with a steel wire.
6.Repeat the process above till all tubes are installed.
Qingdao Kwayt Co.,Ltd is the subsidiary company of Shandong Hongsheng Steel Pipe Co., Ltd. which is engaged in exportation of steel pipes and fittings. Shandong Hongsheng Steel Pipe Co., Ltd. is the largest manufacturing and sales enterprise for galvanized steel pipe ,seamless steel pipe and fittings in the north of Shandong Province.Our factory supply Sonic pipes,galvanized steel pipe,stainless steel pipe,carbon steel pipe, alloy steel pipe,ERW/SSAW/ LSAW PIPE, API pipe,pipe fitting.
Our products are widely used in petroleum, chemical, power and gas, oil and gas well field casing and tubing, high pressure boiler tube, drinking water, fire, high-speed fence construction, steel tube, etc.
Welcome to visit our factory !
We supply sonic pipe test report
Any question or you are interested in sonic pipe ,pls feel free to contact me !!!
